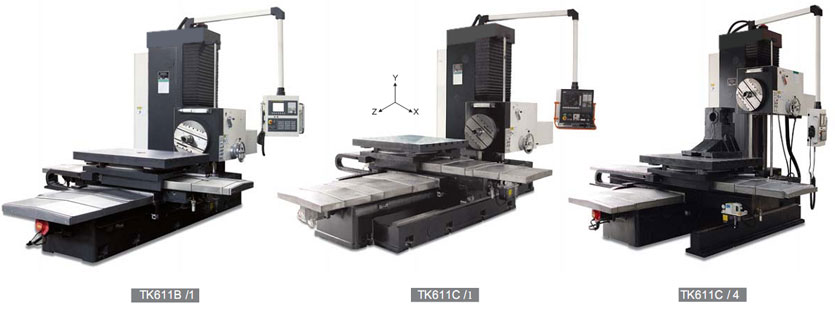

TK Series


MAIN CHARACTERISTIC
Max. load on worktable: 5000kg
Max. permitted torque of spindle: 1100N.m
Max. permitted torque of facing head: 1100N.m
Max. axial feeding force on spindle: 13000N
Steps of spindle speed: Infinite
Steps of facing head speed: Infinite
Range of spindle speed: 12~1100rpm
Range of facing head speed: 4~125rpm
Feeding steps of radial tool holder: Infinite of facing head per rev.
Feeding range of radial tool holder: 0.2-330mm/min of facing head per rev.
Feeding steps of spindle: Infinite
Feeding range of spindle: 0.5-1000mm/min
Rapid traverse of spindle: 2.06m/min
Rapid traverse of facing head radial tool holder: 1.37m/min

MAIN PARAMETERS
Spindle dia.: 110mm
Worktable area (L×W): 1320×1010mm
Max. difference from spindle center to table face: 835mm
Min. difference from spindle center to table face: 5mm
Vertical stroke of headstock: 830mm
Axial stroke of spindle: 550mm
Radial stroke of facing head tool holder: 160mm
Transversal stroke of worktable: 1200mm
Longitudinal stroke of worktable: 1300mm
Max. boring hole dia.: 240mm
Max. machined end dia. of facing head tool holder: 630mm
Max. drilling hole dia.: 50mm
Inner hole taper of spindle: 7:24
Axial shift of spindle in one rev. of handle: 16.9mm
Max. tool weight for taper hole: 18Kg
Main motor power (converter motor): 11kw, 6000rpm
Servo motor (X) (SIEMENS system): 18Nm, 3000rpm
Servo motor (X) (FANUC system): 22Nm, 2000rpm
Servo motor (Y) (SIEMENS system): 18Nm, 3000rpm
Servo motor (Y) (FANUC system): 22Nm, 2000rpm
Servo motor (Z) (SIEMENS system): 27Nm, 3000rpm
Servo motor (Z) (FANUC system): 22Nm, 2000rpm
Servo motor (W) (PANASONIC): 18.8Nm, 2000rpm
Servo motor (rotary table) (SIEMENS): 18Nm, 3000rpm
Servo motor (rotary table) (FANUC): 22Nm, 2000rpm
Speed of headstock lifting, worktable longitudinal: 5m/min and transversal rapid traverse
Positioning accuracy:
X: 0.04mm
Y: 0.04mm
W: 0.04mm
Repeat positioning accuracy: 0.015mm
Min. dividing unit of table: 5°
Dividing accuracy of table (0°90°180°270°): ±2.5″
Dividing accuracy of table: ±5″
Rotating repeated positioning accuracy of table: 2″

OVERALL SIZE (L×W×H): 5347×3098×2889mm

NET WEIGHT: 13500kg
