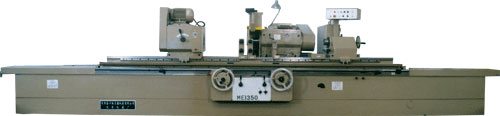

ME1350 CYLINDRICAL GRINDER

The machine is designed and manufactured for grinding cylindrical or conical external surfaces with accuracy of IT5 and IT6.lt is most suitable for tool’s workshop or repairing workshop in small batch production. The longitudinal travel of worktable is controlled steplessly by hydraulic system,and also by hand wheel.The rapid approach and withdrawal of wheel head is hydraulic controlled, infeed is carried out by hydraulic and handwheel. The feed is divided in coarse and fine, it is carried out by handwheel.

TECHNICAL SPECIFICATION
Specification(mm)
Packing size (mm)
Net weight(kg)
Gross weight(kg)
L
W
H
§¶500??1500
5650
2400
2120
8000
9500
§¶500??2000
5650
2400
2120
9000
10500
§¶500??3000
7500
2400
2110
11000
13000
Grinding dia
With steady rest
mm
Max
200
mm
Min
30
Without steady rest
mm
Max
500
mm
Min
30
Max. workpiece weight
kg
1000
Center high
mm
270
Distance between centers
mm
1500
?? ME1350??1500 ?©
mm
2000
?? ME1350??2000 ?©
mm
3000
?? ME1350??3000 ?©
Max. longitudinal travel of worktable
mm
1600
?? ME1350??1500 ?©
mm
2090
?? ME1350??2000 ?©
mm
3090
?? ME1350??3000 ?©
wheelstock
Wheel speed
m/s
35
Spindle speed
r/min
892
Rapid approach/withdrawal
mm
100
Max. movement
mm
410
Grinding wheel
Max
mm
750??75??305
Min
mm
535??75??305
Workstock center
Morse
M6
Tailstock center
Morse
M6
Motor of wheelstock
KW
15
Total power of motors
KW
19.85
GENERAL FEATURE
Movement of sleeve of tailstock
70
Min.manual
0.0025
Auto-periodic feed
Yes
Wheel dressing and compensation
Manual
WORKING ACCURACY
Roundness
mm
0.0025
Uniformity of diameter in longitudinal section
mm
0.008
Roughness
¦?m
Ra0.2
MAIN ACCESSORIES
Oil tank
1set
Wheel balancing arbor
1set
coolant tank
1set
Measuring plate
1set
Wheel dresser
1set
Driving dog
1set
Wheel with flange
1set
Parallel wedge
12.12.16sets
Wheel dismount tool
1set


Open-type steady rest
2sets
Only for ??2000,3000
MAIN ACCESSORIES SUPPLIED ON SPECIAL ORDER
Radius wheel dresser
1set
Positioner
1set
Half center
1set
Wheel balancing stand
