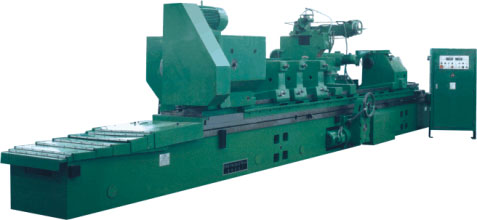

M1380 CYLINDRICAL GRINDER

M1380-type cylindrical grinder is mainly used to grind external cylindrical surface and conic surface of parts with small coning. The accuracy of ground parts can reach IT5, IT6 and the end surface with a lower size accuracy of the stepped component. The range of the working diameter is φ50~800mm. The machine is suitable for using in machinery manufacturing industry, printing machinery, heavy machinery , etc.The movement of worktable and the swiveling of workpiece are controlled by AC variable frequency motor together with frequency converter. The worktable is driven with mechanical device and is controlled by manual mode as well as automatic mode. Fast advance or reverse of grinding wheel is driven by hydraulic system. The machine adopts a dynamic hydrostatic pressure spindle. Grinding wheel is dressed through manual or automatic mode. Cross feed is carried out by hydraulic device as well as hand operation device.

MAIN PARAMETERS
Specification(mm)		Overall dimension(mm)						Net. Weight	Gr. weight
		L				W	H	(kg)	(kg)
§¶800??3000		No.1case			8200	2800	2100	31000	35000
		No.2case			4250	2220	1250
§¶800??4000		No.1case			8200	2800	2100	33000	37000
		No.2case			4250	2220	1250
§¶800??5000		No.1case			8900	2800	2100	35000	40000
		No.2case			4600	2200	1250
Grinding dia.		mm	Without Steady rest		Max	§¶800
					Min	§¶50(With ¦µ900 wheel)
			With steady rest		Max	§¶400
					Min	§¶250
Max Workpiece weight		mm	3000			?? M1380??3000 ?©
			4000			?? M1380??4000 ?©
			5000			?? M1380??5000 ?©
Max Workpiece weight		kg	5000
Center high		mm	500
Distance between centers		mm	3100			?? M1380??3000 ?©
			4100			?? M1380??4000 ?©
			5100			?? M1380??5000 ?©
Workstock center			Metric			100#
Tailstock center			Metric			100#
Workpiece speed			r/min			6-80
Movement of sleeve of tailstock			mm			80
Grinding wheel		mm	Max			900??75??305
			Min			720??75??305
wheel speed		m/s	35
Max movement of wheelstock(includes rapid movement)						mm	475
Max speed of wheelstock						mm	100
Max.rotary angle of upper-worktable		Agreeable hour hand				??	1
		Negative hour hand				??	2
Motor of workhead						KW	11
Motor of wheelstock						KW	22
Total power of motors						KW	39.98
WORKING ACCURACY
Roundness				mm		0.0025
Uniformity of diameter in longitudinal section				mm		3000		0.008
				mm		4000??5000		0.012
Surface roughness				¦?m		Ra0.32
MAIN ACCESSORIES
Wheel dresser	1 1 set	Measuring plate						1 set
End dresser	1 1 set	Grinding wheel(with flange)						2 sets
Open -type steady rest		2 sets		3000 ?? 4000 Specification
Open-type steady rest		3 sets		5000Specification
MAIN ACCESSORIES SUPPLIED ON SPECIAL ORDER
Arc dresser		1 set		Wheel balancer				1 set
