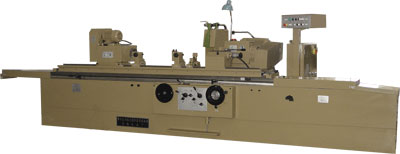

ME1332A×500/750/1000/1500 CYLINDRICAL GRINDER

The machine is designed to grind the external surface of cylindrical and conic parts with accuracy of IT5and IT6.It is suitable to use in tool workshop.machinery repairing workshop and production workshop for mind-small batch process production.It has the following features:worktable reciprocating movement, wheelhead rapid approach and withdrawal, periodic feed, retractable sleeve of tailstock’s center,lubricating of worktable are all hydraulic controlled. handlebar and Switch set in the front of machine so the machine is ease operated.

                 TECHNINCAL SPECIFICATION
Grinding dia mm
With steady rest
Min
mm
§¶15
Max
mm
§¶150
Without steady rest
Min
mm
§¶15
Max
mm
§¶320
Max grinding length
mm
500??750??1000??1500
Max workpece weigh
kg
150
center hight
mm
180
Spindle speed
r/min
1100
Grinding wheel
Max
mm
§¶600??63??¦µ305
Min
mm
§¶450??63??¦µ305
Wheel speed
m/s
35
Rapid feed/back amount of wheelhead
mm
50
Max movement of grinding wheel
mm
285
Movement of sleeve of tailstock
mm
30
Max. longitudinal travel of worktable
mm
580?¬830?¬1100?¬1600
Max. rotary angle of wpper-worktable
Agreeable hour hand
3
Negative hour hand
7?¬6?¬5?¬4
Workstock center
Morse
4
Tailstock center
Morse
4
Total power of motours
kw
9.475
Overall dimension of machine(L??W??H)
mm
??2249?¬2718?¬3238?¬4269?©??1760??1545
Packing case size
mm
??3450?¬3450?¬3530?¬4340?©??2000??1960
Net weight of the machine
kg
3500?¬3800?¬4000?¬4700
Gross weight of the machine
kg
4000?¬4300?¬4600?¬5500
    WORKING ACCURACY
Uniformity of dia.in longitudinal section
Roundness??mm?©
B??Cylindricty??mm?©
Max grinding length??mm?©
a??mm?©
b??mm?©
500?¬750
0.0015
Short try the puece  0.005
Crow to try piece   0.008
1000?¬1500
0.0025
Roughness
¦?m
Ra0. 2
     MAIN ACCESSORIES
Cooling water tank
1 Set
Parallels of the machine
9??11??11??13Sets
Grinding wheel dresser
1 Set
Clamping
1Set
Grinding wheel balancing shaft
1 Set
Grinding wheel(with flange)
1Set
                  MAIN ACCESSORIES SUPPLIED ON SPECIAL ORDER
Are dresser
1 Set
Grinding wheel balancer
1Set
End dresser
1 Set
Positioner
1Set
