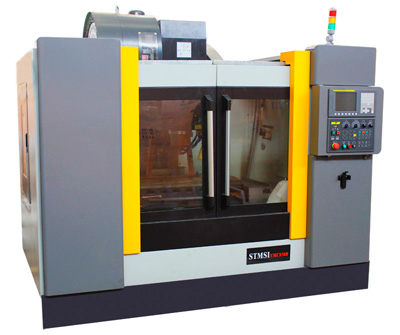

VMC650/VMC750/VMC850B/VMC1060/VMC1060B

Rectangular hardened sliding ways are applied in X-axis, Y-axis and Z-axis. The machine has high rigidity, high accuracy, high speed, high efficiency, high reliability, large torque and wide machining range. This series machines are designed for milling, drilling, reaming, boring, tapping, and counter boring/sinking valve type workpieces, cams, moulds/dies, chuck type workpieces, and case type workpieces used in automobile industry, motor cycle industry, machinery manufacturing, sewing machine industry, motor industry, and instrument industry, especially those in complex shapes like 2-dimension or 3-dimension concave/convex moulds and cavities. The machine is either suitable for multi-product small/medium patch production or mass production when fitted to a production line. Use of the said machines can save technical equipment, shorten production preparation time, ensure product quality and improve productivity.


Specification Unit VMC650 VMC750 VMC850B VMC1060 VMC1060B
Table face mm 420?800 490?900 500?1050 600?1300 600?1300
Permissible load kg 600 600 600 800 800
Spindle taper hole ISO 40 ISO 40 ISO 40 ISO 40 ISO 40
Spindle motor (cont./15min overload) kW 5.5/7.5 5.5/7.5 7.5/11 7.5/11 7.5/11
Max spindle speed r/min 8000 8000 8000 8000 8000
X/Y/Z-axis stroke mm 650/400/480 750/450/500 800/500/550 1000/600/600 1000/600/600
Distance of spindle nose to table face mm 80-560 180-680 105-655 180-780 180-780
Distance of spindle center to column way mm 480 520 550 600 655
X/Y/Z-axis rapid traverse m/min 12/12/10 20/20/15 16/16/12 20/20/15 20/20/15
Capacity of tool magazine pcs 16/20/24 16/20/24 16/20/24 16/20/24 16/20/24
Max tool weight kg 8 8 8 8 8
Positioning (JIS) mm ±0.008 ±0.008 ±0.008 ±0.008 ±0.008
Repeatability (JIS) mm ±0.003 ±0.003 ±0.003 ±0.003 ±0.003
Air source L/min 250 250 250 250 250
Air pressure MPa 0.6 0.6 0.6 0.6 0.6
CNC FANUC FANUC FANUC FANUC FANUC
Dimension mm 2340?2270?2250 2800?2300?2600 2700?2300?2630 3300?2900?2800 3300?2900?2800
Machine net weight kg 4500 5500 5000 8500 8500
