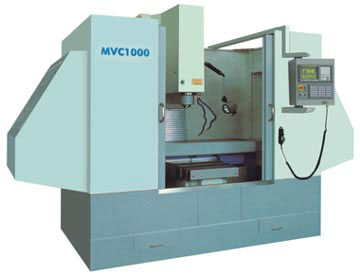

MVC1000

This machine is used for machining various impression die, cold stamping die, pattern, cam, and complicated shapes. It can also be used for milling plane, square groove, slanting groove, drilling, boring, etc. It is applied to die trade which has complicated shape and changes dies frequently, to mechanical manufacture and other trades.


Specifications MVC1000CNC
Worktable size 405X1370mm
T-shape groove 5X16mm
Left and right travelX) 980mm
Front and rear travel(Y) 460mm
Upper and lower travel(Z) 500mm
Spindle motor power 7.5HP(5.5KW)
Spindle speeds(stepless) A/C inverter:60-6000RPM
Spindle bore BT40
Distance of spindle centre to column guideway 460mm
Distance of spindle end to worktable surface 50-550mm
Positioning accuracy ±0.01
Repeatablity ±0.005
Machine weight 4500KG
Outling dimensions 3200X2200X4500mm
NC systems "SIEMENS"SINUMERIK 802C,802D "FANUC"Oi,0MD "MITSUBISHI" E60,M64FAGOR 8025M Guangzhou system GSK990M
