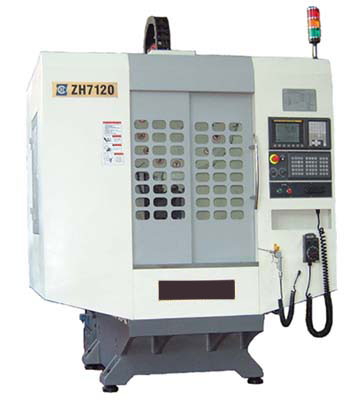

ZH7120

This machine is applied to automobile, engine, instruments, light industry, light textile, electric devices and mechanical manufacture, etc. for machining parts such as medium or small boxes, covers, plates, shell, disk, etc. Equipped with CNC system of MITSUBISH E60M or FUNAC Oi Mate Model B

ITEM
UNIT
ZH7120

Machining range

 Max. drilling diameter
mm
Φ20 ( 45 # )
Max. tapping diameter
mm
M16 ( 45 # )
Max. boring diameter
mm
Φ50 ( 45 # )
Worktable
Worktable size
mm
630 × 400
Load of worktable
kg
300
T-slot (Qty. × Width × Space)
mm
5 × 14 × 80
Spindle
Spindle taper
NO.30 ( BT30 )
Spindle speed
r/min
10-8000
Spindle motor power
kW
3.7/5.5
Travel
Working travel(X/Y/Z)
mm
550/400/270
Distance from spindle nose to worktable face
mm
160-430
Distance from spindle center to column guideway shielding
mm
236
Tool magazine
Tool shank type
BT30
Magazine capacity
pcs
14
Tool change time (T-T)
s
2
Max. tool length
mm
200
Max. tool weight
kg
5
Feeding
Rapid speed (X/Y/Z)
m/min
30/30/30
Feeding speed
mm/min
1-10000
Positioning accuracy
 Positioning accuracy( national standard)
mm
0.03
Repeatability accuracy (national standard)
mm
0.016
Others
 Machine dimension (L × W × H)

1777×2150×min2360 (max 2585)

Packing dimension (L × W × H)
mm
2080 × 2390 × 2740
Net weight/Gross weight
kg
2700/3370
