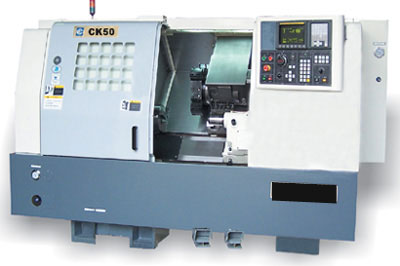

CK40/50 CNC LATHES

These series machines are high precision CNC machines with good performance-price ratio.The high grade cast iron bed,slant rails and high precision cartridge type spindle are designed to damp vibration. The multi-station turret changes tools in the nearest path. Equipped with FANUC 0i mate control system.The machines,with a new appearance,easy-operated panel and full enclosed protection,are suitable for finishing or semi-finishing medium or small type workpieces.

ITEMS
UNIT
CK40
CK50
Capacity
 Max.swing dia.over bed
mm
Φ400
Φ500
Max.swing dia.over carriage
mm
Φ260
Φ320
Recmd turning dia./length
mm
Φ165/400
Φ210/530
Max.turning length
mm
Φ285
Φ370
Max.bar diameter
mm
Φ42
Φ51
Spindle
 Hyd.chuck dia.
mm
Φ165
Φ210
Type of spindlen nose

A2-5(GB/T5900.1)

A2-6(GB/T5900.1 )

Spindle bore diameter
mm
Φ 57
Φ 62
Bearing dia.(front/rear)
mm
Φ90/Φ80
Φ100/Φ90
Spindle speed
r/min
70-3000
60-2250
Spindle motor power
kW
7.5
15
Tailstock
 Quill diameter/travel
mm
Φ70/80
Φ90/100
Quill taper
MT No.
4
5
Carriage Slant angle
DEG
45 °
45 °
X/Z travel
mm
165/410
210/550
X/Z rapid traverse rate
m/min
12/16
12/16
X/Z servo motor torque
Nm
11/20
11/20
X/Z ball screw dia.
mm
Φ28/Φ40
Φ28/Φ40
Turret
Number of stations
8/12
8/12
Tool Size(turning / boring)
mm
20×20/Φ32
20×20/Φ40
Others
 Power source
kVA
35
35
Dimensions(L×W×H)
cm
254X167X166
306X181X185
Gross weight
kg
3000
4500
