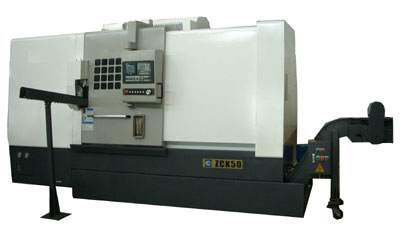

ZCK50 CNC BEARING LATHE

ZCK50 efficient CNC (bearing) lathe is designed specially for automation machining of external/internal bearing rings from blank process to process before grinding. The machine has the following features: 60° slant bed, very rigid. Side mounting chip conveyor conveys chips fluently. High torque and double spindle structure ensures high 　productivity at large feed. Precision cartridge type main spindle 　rotates without vibration. Rectangular guide ways are used for X-axis, Z1/Z2 axes. 3-5 　station comb type tool rest offers fast tool change. Frequency inverting spindle and centralized operator's panel; Auto parts loading and catching makes it possible for one person 　to operate several machines. Production 　cost is reduced.

Item
Unit
ZCK50
Capacity
Max. machining dia./length
mm
Φ200/120

Main

headstock
Hydraulic chuck dia.
mm
Φ254(10”)
Spindle nose
/
A2-8
Transmission ratio
2.55
Spindle bearing dia. (front/rear)
mm
Φ140/Φ130
Spindle speed
r/min
30-1600
Main motor power(cont./30min)
kW
18.5/22



Sub

headstock



Max. travel z2
mm
810
Rapid traverse z2
m/min
12
Servo motor power z2
kW
4.8
Other data same with main headstock
Carriage
Slant angle
DEG
60°
Travel x/z1
mm
580/655
Rapid traverse x/z1
m/min
12/12
Servo motor power x/z1
kW
3.8/4.8
Ball screw dia. X lead x/z1
mm
Φ40X8/Φ50X8
Tool rest
Number of stations
5×2 (depending on work)
Tool size(turning/boring)
mm
32×25/Φ40
Others
Power source
kVA
35

Dimension: L×W×H

(excl. chip conveyor and loading stand)
mm

3740×1799×2323

Dimension: L×W×H

(incl. chip conveyor and loading stand)
mm

4918×2905×2323

Total weight
kg
15000
