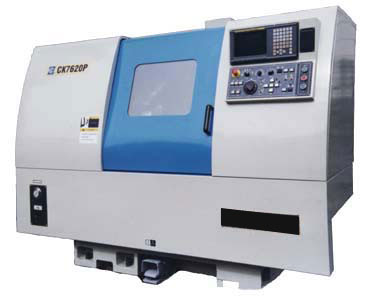

CK7620P CNC LATHE

CK7620P CNC lathe is designed for rough and finish turning of small short shaft type and chuck type workpieces in automobile,motorbike and valve industries.It features a 60°slant bed,rigid and easy for swarf removal.Longitudinal and cross linear rolling rails reduce friction and ensure running without vibration.Comb-type tool post is compact,economic and rigid.Full enclosed guard is reliable.Powerful frequency-inverting spindle motor runs steady.Turnings of curved surfaces like cylindrical,tapered and arc faces and threading are performed automatically with the machine.

Capacity Power of Z-axis motor
1.0 kw
Max.swing dia.
Φ400 mm
Torque of Z-axis motor
12 Nm
Max.turning dia.
Φ200 mm
 Z-axis screw
Φ40X10 mm
Max.turning length
180 mm
 Max.speed of Z-axis
20 m/min
Swing over cross slide
Φ100 mm
 X-axis speed
Spindle Power of X-axis motor
0.6 kw
Spindle bore
Φ62 mm
Torque of X-axis motor
6 Nm
Bar dia.(hollow chuck/spring collet(optinal))
Φ51mm/Φ42 mm
 X-axis screw
Φ32X10 mm
ID of spindle bearing(front/rear)
Φ100 mm Φ90 mm
Max.speed of X-axis
20m/min
Max.torque of spindle
10.5 kgf.m
 Turret
Spindle speeds
40-4000 r/min
 Travel X/Z
400/300 mm
Chuck dia.
Φ210(8") mm
 Number of stations
6-8
Spindle nose
A2-6
Tool size
20X20 mm
Power of main motor
7.5/11 kw(inverter)
Others
Z-axis feed Weight of machine
3200 kg
