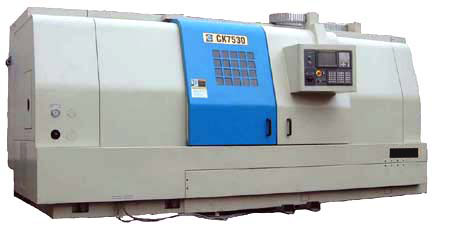

CK7530 CNC LATHE

CK series CNC lathes adopt strengthed casting base and exclusive slant bed structure. which provide excellent rigidity, dampening, and convenient chip removal. The high precision through-hole spindle driven by powerful A.C.main motor,features the stability and low noise during operation. Key parts like NC system, turret, chuck and bearings on the ball screw and main spindle are all famous foreign products, with their good reliability and low noise, ensuring the higher machining accuracy and loger part life.

Description
Unit
Specification
Electric turret
Hyd.turret
VDI
Capacity
 Swing over bed(closs slide)
mm
Φ670/Φ470
Max.turning length
mm
1500(800)
1450
Max.turning dia.
mm
Φ600
Φ550
Φ520
Max.bar dia
mm
Φ90
Spindle
 Hyd.chuck dia.
mm
Φ305
Spindle nose
GB5900.1
A2-8
Spindle thru hole
mm
Φ105
Spindle bearing dia.(front/rear)
mm
Φ140/Φ130

Spindle speeds
r/min
25-2500
L:12-830 H:50-2500(with decelerator)
Main motor power(continous 30 minute)
kw
22/30
22/30(with decelerator)
Tailstock
 Sleeve dia./travel
mm
Φ110/Φ150
Centre taper(standard/live spindle)
MT NO.
6/5
Carriage
 Slant angle
DEG
60°
Travel distance　X/Z
mm
325/1550(880)
305/1550(880)
318/1500(880)
Rapid traverse　X/Z
m/min
12/16
Servo motor torque　X/Z
N.m
12/22
Ball screw dia.　X/Z
mm
Φ40/Φ50
Turret
 Turret sations
8/12
12
12
Tool size(turning/boring)
mm
32X32/Φ50
Other
 Power Supply
kVA
60
Measurement(LXWXH)
mm

4822X2276X2178(3820X1990X2040)
Gross weight
kg
9730(8300)
