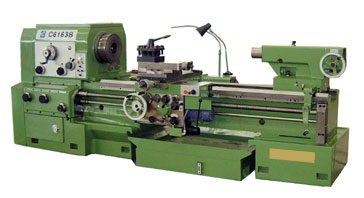

C6163B Horizontal Lathe

C6163B universal lathe can perform internal and external turning, taper turning, end facing, and other rotary parts turning; Threading Inch, Metric, Module and D.P.; Perform drilling, boring and groove broaching; These series lathes operate on power supply of different voltages (220V, 380V, 420V) and different frequencies (50Hz, 60Hz).

ITEMS
UNIT
PARAMETERS
Capacity
Max. swing dia . over bed
mm
Φ630
Max. swing dia . over cross slide
mm
Φ400
Max. wokpiece length
mm
1500
Bed guide ways width
mm
560
Spindle
Sp indle bore diameter
mm
Φ105
Taper of spindle bore
/

1:20

Type of s p indle nose
/
A1-11
Sp indle speeds
r/min
14 steps 12.5-1120

Feeds and threads

Max. travel of upper toolpost
mm
200
Max. travel of lower toolpost
mm
480
Tool section
mm
32 × 32
X -axis feed range
mm/r
56 kinds 0.031-3.5
Z-axis feed range
mm/r
56 kinds 0.062-7.0
Metric threads
mm
31 kinds 0.5-28
Inch threads
t.p.i
38 kinds 56-1
Module threads
π mm
21 kinds 0.25-7
Diametric pitch threads
DP
27 kinds 56-4
Tailstock
Diameter of quill 　　
mm
Φ 100
Max. travel of quill
mm
250
Taper of quill (Morse)
/
Morse No.5

Motor

Main motor power
kW
11
Coolant pump motor power
kW
0.12
Others
Length
mm
3500
Width
mm
1260
Height
mm
1390
Total weight
kg
5000
