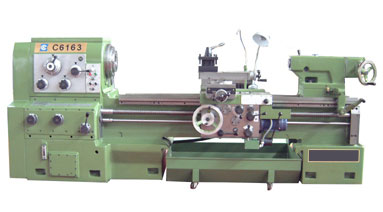

C6163 C6263 UNIVERSAL CNC LATHES

C6163 universal lathe can perform internal and external turning, taper turning, end facing, and other rotary parts turning; Threading Inch, Metric, Module and D.P.; Perform drilling, boring and groove broaching; Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries; These series lathes operate on power supply of different voltages ( 220V, 380V, 420V) and different frequencies (50Hz, 60Hz).

Capacity Feed
Max.swing dia.over bed
Φ630 mm
X-Z travel
200/380
Max.swing dia.over slides
Φ400 mm
 X-Z feed range
56 kinds 0.031-3.5mm
56 kinds 0.062-7.0mm
Max.swing dia.in gap
Φ900mm(CS6263)
Metric threads
31 kinds 0.5-28 mm
Length in gap
300mm(CS6263)
 Inch threads
38 kinds 56-1 t.p.i
Max.workpiece length
1000/1500/2000/3000mm
 Module threads
21 kinds 0.25-7 πmm
Spindle Diametric pitch threads
27 kinds 56-4 t.p.i.π
Type of spindle nose
JIS A1-11
Tailstock
Taper of spindle bore
1/10 Metric taper
 Diameter of quill
Φ80 mm
Spindle bore diameter
Φ84 mm
Taper of quill
MT No. 5
Spindle speed
7.5KW 14 steps 12.5-1120rpm
 Max. travel of quill
200 mm
11KW 14steps 18-1600rpm
 Others
Spindle motor power
7.5/11 KW
Machine length
2878/3378/3878/4378 mm
Turret Machine Width
1206 mm
Number of tool stations
4
 Machine Height
1530 mm
Tool O.D.size
25X25 mm
 Machine weight
2600/2800/3000/3400 kg
