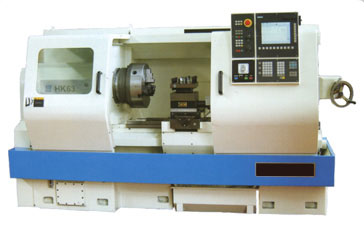

CJK6163/HK63 CNC LATHES

CJK6163/HK63 CNC lathes features the rigidity cast iron bed and quencher and burnished guideways provide the machine wide guideways,high rigidity,stable accuracy,etc.They are mechanical timing or inverter timing.With FANUC 0i Mate, MITSUBISHI E60, SINUMERIK 802D, DASENG,etc. CNC systems, these lathes are suitable for machining internal and external cylinders, cones, arc and curved surfaces, ends, and inch or metric threading as well. Also with 4-station turret and protection cover, CJK6163/HK63 CNC lathes are available for different needs of customs, and convenient to open and close for ensuring civilized production. The concentrate panel makes operation and programming so convenient for operators. It is available for various middle or small batch production, and their excellent features can be further showed in machining complex and high accurate work.

ITEMS
UNIT
CJK6163
HK63
Capacity
 Swing dia.over bed
mm
Φ630
Swing dia.over carriage
mm
Φ360
Max.turning diameter
mm
Φ500/Φ325(6-station turret)
Distance between centers
mm
1000/1500/2000
Max. turning length
mm
760/1260/1760
Bed guideways weight
mm
425
Spindle
 Spindle bore diameter
mm
Φ84
Φ84/Φ80*
Type of spindle nose
A1-11
A1-11/A2-8*

Spindle speeds
rpm
18-1600(14-steps)

Three gears shifting

High speed:155-1600

Medium speed :50-525

Low speed:20-210
Spindle drive motor power
kW
11
11(inverter)
Tailstock
 Tailstock quill diameter
mm
Φ80
Tailstock quill travel
Mm
200
Tailstock quill taper
Morse Taper No.5
Turret
 X/Z Raoud traverse rate
m/min
6/6
Number of tool stations
4
Tool O.D.size
mm
32X32
Feed
 X/Z motor powers
kW
0.6/1.0
X/Z lead screw dia.
mm
Φ32/Φ50
Other
 Power
kVA
30
Dimension(LXWXH)
mm

1000 Model:2800X1530X1670

1500 Model:3300X1530X1670

2000 Model:3800X1530X1670
Weight
kg
 3250/3500/3750
