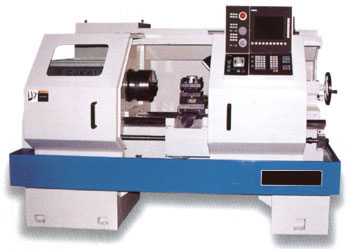

CJK6140H SERIES CNC LATHES

With 4-station or 6-station turrel and protection cover,These series economic type CJK6140H/50H/66H CNC lathes are available for different needs of customers,and convient to open and close for ensuring operators' safety.The lathe has 4 types (750,1000,1500 and 2000).Also with FANUC 0i-TC, FANUC 0i Mate-TC, 21T Huazhong,SINUMERIK802D,DASEN 3i,GSK980T Guangzhou,etc.CNC systems,these lathes are capable of turning internal and external cylinders,cones,arc and curved surfaces,ends,and inch or metric threading as well.They are available for various middle or small batch production,and their excellent features can be further showed in maching complex and high accurate work.


SPECIFICATIONS
UNIT
CJK6140H
CJK6150H
Capacity
 Swing over bed
mm
Φ400
Φ500
Swing over carriage
mm
Φ200
Φ280
Max. turning diameter
mm
Φ400/Φ400*
Φ500/Φ400*
Max. turning length
mm
750/700*　1000/950* 　1500/1450*　2000/1950*
Max. part length
mm
 　　 　 530/480* 　780/730* 　 1280/1230* 　1780/1730*
Spindle
 Spindle bore diameter
mm
Φ52
Φ52/Φ82/Φ105
Type of spindle nose
no
Φ52 bore:ISO 702/III NO.6 bayonet lock
Φ82、Φ105 bore:ISO 702/II NO.8 cam-lock type
Spindle speed range
rpm
21 steps 11-1600
12 steps 36-1600 (Φ105 bore)
Spindle motor power
KW
7.5
Tailstock
 Tailstock quill diameter
mm
Φ75
Tailstock quill travel
mm
150
Tailstock quill taper
MT
5
Turret
 Number of tool stations
no
4
Tool O.D. size
mm
25X25
Feed
 X-Z axis travel
mm
X:275;Z:650/900/1400/1900
Rapid traverse rate (X/Z)
mpm
6/12
Others
 Dimension (LXWXH)
mm
2250/2500/3000/3500X1370X1690
Packing dimension (LXWXH)
mm
2550/2800/3300/3800X1920X2200
Machine net weight
2050/2100/2150/2200
2100/2150/2200/2260
