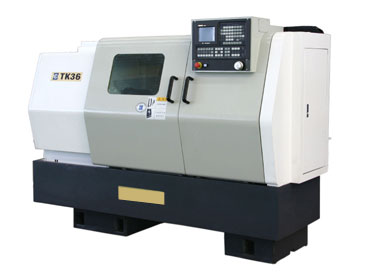

TK36 CNC LATHE

This is a CNC lathe controlled by Guangzhou NC system and with 2-controllable axes. Operations of internal and external turning, taper turning, circular surface turning, inch and metric threading are performed. The lathe features a 4-station turret to satisfy different cutting requirement, a sliding door and a variety of caution plates to guarantee safety for operators. It is applicable to batch production of multi-specification work, especially precision work in complex contours.

Item
UNIT
TK36
Capacity Max.swing over bed
mm
Φ360
Max.swing over slide
mm
Φ180
Max.turning dia.over bed
mm
Φ320
Distance between centers
mm
750
Max.turning length
mm
650
Spindle Spindle thru hole
mm
Φ57
Spindle nose
D type No.6
Spindle speed
r/min
140-3000(stepless)
Chuck dia.
mm

Φ200
Main motor power
kw
5.5(freq.inverting)
Tailstock
Quill dia./movement
mm
Φ55/120
Taper of center
MT No.4
Carriage
X/Z-axis travel
mm
200/660
Rapid traverse rate
m/min
10/12
Turret
Number of stations/type
4/vertical
Tool size
mm
20X20
Power source
kVA
12
Dimension(LXWXH)
mm
2305X1258X1655
Gross weight
kg
1700
