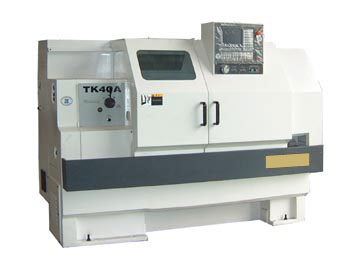

TK40A CNC LATHE

TK40A CNC lathe,with FANUC 0i Mate-TC,GSK 980T CNC systems.The lathe can realize two axes controlling.The lathe can also be equipped with 802C baseline or other CNC system as required.The lathes are capable of turning internal and external cylinders, cones,arc and curved surfaces,ends and inch or metric threading as well. Also 4-station turret and protection cover.TK40A lathe are available for different needs of customs,and convenient to open and close for ensuring operator's safety. It is available for various middle or small batch production,and their excellent features can be further showed in machining complex and high accurate work.

SPECIFICATIONS
UNIT
750
1000
1500
Capacity Swing over bed
mm
Φ410
Swing over carriage
mm
Φ180
Max.turning diameter
mm
Φ300
Max.part length
mm
750
1000
1500
Max.turn length
mm
550
800
1300
Spindle Type of spindle nose
m
ISO 702/II No.6
Spindle bore diameter
mm
Φ52
Spindle drive motor power
KW
5.5 (inverter)
Spindle speed
rpm
3steps 45-2500:High speed 210-2500;Medium speed 117-1400;Low speed 45-525
Tailstock Tailstock quill diameter
mm
Φ55
Tailstock quill tape
MT
No. 4
Tailstock quill travel
mm
120
Turret Number of tool stations
m
4
Tool O.D. size
mm
20X20
Feed X travel
mm
200 (4-station tool post)/ 400 (comb-type tool post)
Z travel
mm
550
800
1300
Rapid traverse rate(X/Z)
mpm
3/6
Other Dimension(LXWXH)
mm
1890/2140/2640X1260X2050
Gross
Kg
1700
2000
2500
Net weight
Kg
1500
1800
2300
